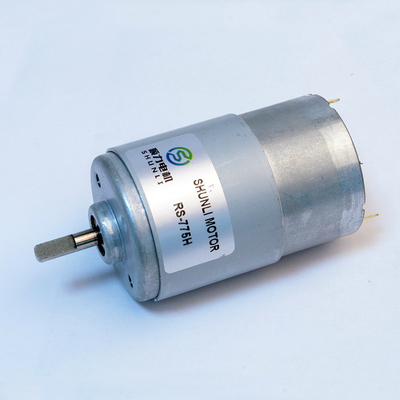

Name: High Torque 12V 24V 36V 40V 48V Totally Enclosed Permanent Magnet Brushed DC Motor
Brand: High Torque 12V 24V 36V 40V 48V Totally Enclosed Permanent Magnet Brushed DC Motor
SKU: RS-775A
Price: 2.78 USD
Availability: InStock
Rating: 5 (178 reviews)

特徴ギャラリー製品の説明見積依頼

特徴

仕様

Warranty: 3months-1year

Model Number: RS-775A

Usage: Car, Electric Bicycle, FAN, Home Appliance, High torque 12V 24V 36V 40V 48V Permanent Magnet Brushed Dc Motor

Type: Micro Motor

Torque: 500g.cm-4000 g.cm

Construction: Permanent Magnet

Commutation: Brush

Protect Feature: Totally Enclosed

Speed(RPM): 3000rpm-25000rpm

Continuous Current(A): 0.3A-5A

Efficiency: IE 1

Product Name: RS-775A

Keywords: micro dc motor

Rated Voltage: 6V-24V

Rated Speed: 3000rpm-25000rpm

Typical Applications: Automatically machine

Shaft diameter: 5mm

Diameter: 45mm

Material: Magnets

Brush Type: Brush

Shaft type: Customized

証明: CCC, ce, RoHS, VDE, High torque 12V 24V 36V 40V 48V Permanent Magnet Brushed Dc Motor

基本情報

証明: CCC, ce, RoHS, VDE, High torque 12V 24V 36V 40V 48V Permanent Magnet Brushed Dc Motor

Model Number: RS-775A

お支払配送条件

Packaging Details: Polyfoam inside, strong export carton box outside, with pallet, or as the customer wished. High torque 12V 24V 36V 40V 48V Permanent Magnet Brushed Dc Motor

製品の説明

Product Description

High torque 12V 24V 36V 40V 48V Permanent Magnet Brushed Dc Motor

Product Details

Motor Customized Specification, Please contact me.

Reference Drawing

------ RS - 755 H

------ RS - 775 H

The length of shaft can be customized, Please contact me.

PMDC MOTOR Technical Date
Model		*Rated Voltage (V)*		*No-Load*		*Rated*				*Stall*
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-770H	8523R	6.0~12.0	12 VDC	15000	2.2	13177	15.91	81/826.2	111.8	115	666.9/6802
RS-775H	25110R	6.0~24.0	24 VDC	3478	0.15	2925	0.75	44.4/452.9	13.35	4.07	245.7/2506

Certification

Our Company

Shenzhen Shunli Motor Co. Ltd has been established in 2005. It's a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures, products are exported to more than 50 countries and regions at home and abroad.

FAQ

1.Q: Are you trading company or manufacturer?

A: We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.

2.Q: What is the payment term for a new customer?

A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.

3.Q: I can't find a suitable motor on your website, can you customize the motor for me?

A: Yes, we can customize a suitable motor according to our customer's requirements.

4.Q: Do you have certificates for the motors?

A: Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.

5.Q: How is your Quality Control?

A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.

- Mina -

Shenzhen Shunli Motor Co., Ltd

Mobile:+86 13428927583

Tel: 0755-29124182

Fax: 0755-29124162

E-mail: shunli04@ szslmotor.com
