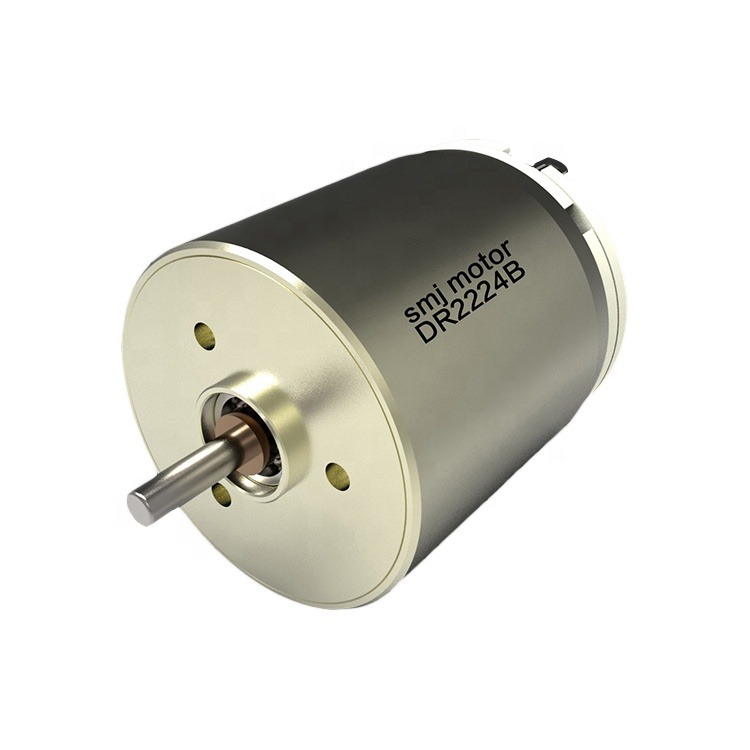

Totally Enclosed High Quality 12V DC Motor Brushed SMJ DC Motor

1 Piece
MOQ
$25.00(1 - 499 Pieces) $16.00(>=500 Pieces)
価格
Totally Enclosed High Quality 12V DC Motor Brushed SMJ DC Motor
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Warranty: 3months-1year
Model Number: DR2224B
Usage: industry Appliance
Type: Brush Motor
Torque: 5mNm
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Totally Enclosed
Speed(RPM): 10900rpm
Continuous Current(A): 0.17-0.98A
Efficiency: IE 1
Nominal torque: 5mNm
Stall Torque: 14mNm
Diameter: 22mm
Length: 24.2mm
Motor type: Ironless
Brush type: graphite brushes
証明: ce
基本情報
証明: ce
Model Number: DR2224B
お支払配送条件
Packaging Details: Maxon replaced motor are packed with foam and paper carton, then pallet
Supply Ability: 50000 Piece/Pieces per Year
製品の説明
Product Description

12V High  quality DC motor Brushed DC motor from SMJ

The motor can replace Maxon motor and please send me an inquiry for detailed info.



DC brushed motor (coreless) application:



1. The healthcare industry: They can be used to power dialysis pumps, CPAP machines, surgery tools, and ambulatory infusion pumps.
2. Robotics: Engineers install them in positioning systems and small wheel systems in robot projects.
3. Automation & Actuators: These motors can be used in precise automation systems and high accuracy actuators.
4. Laboratories: Engineers can use it to drive small but effective equipment such as pumps, stirrers, and centrifuges.
5. Office equipment: Thanks to their small size, effective motors can be installed in printers, card readers, and other office equipment, without the need to make the products bigger.
6. Audio/visual equipment: Pan and tilt drives for cameras & audio turntables can be fitted with effective motors that work quietly.







Gear box P22H (optional)
